March 2019

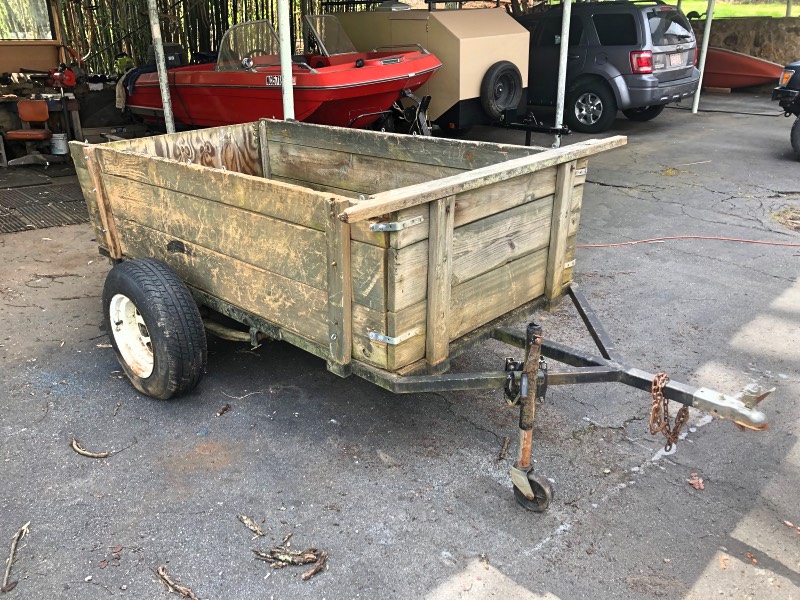

This is the start of the Rainier trailer in late March 2019. John found this trailer and he’ll use it as a base for this new project.

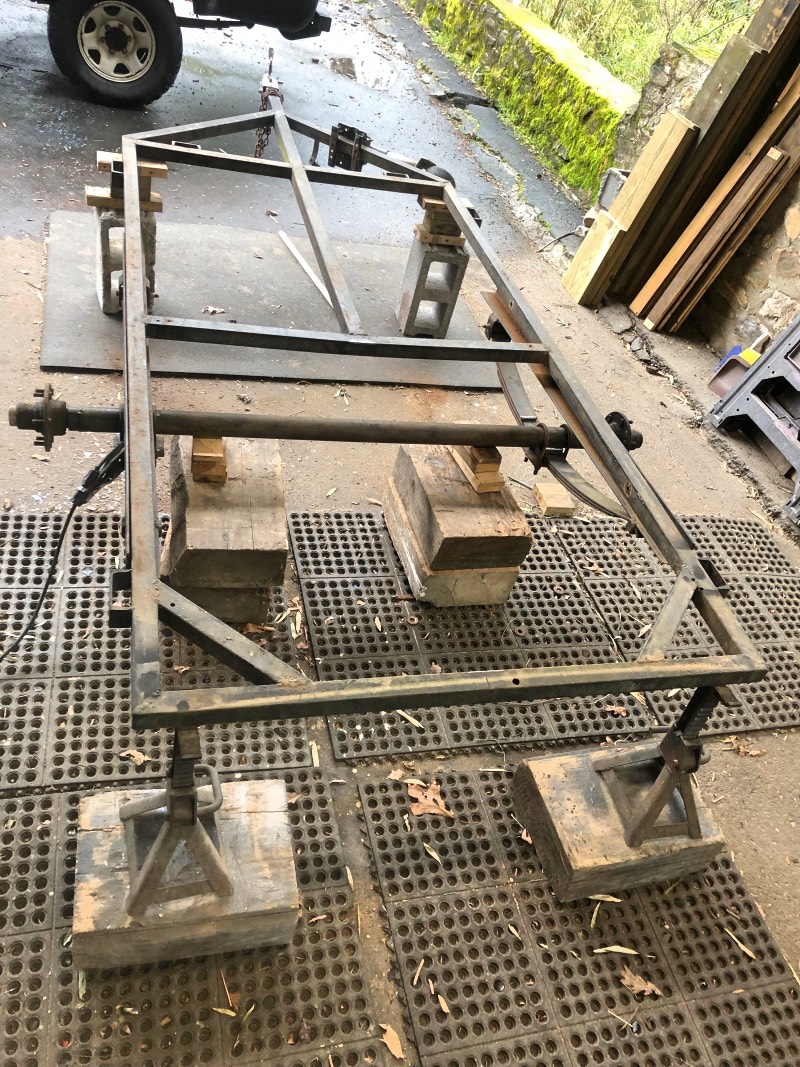

The new project now really begins. This image shows the base of the trailer after stripping it down. Next is sanding and getting it ready for new construction.
John will add more tubes to stiffen the floor, and he’ll move the axle back since this project will be more like a traditional teardrop trailer. This will help distribute the weight more evenly, especially since the rear galley adds a lot of weight towards the rear.
April 2019

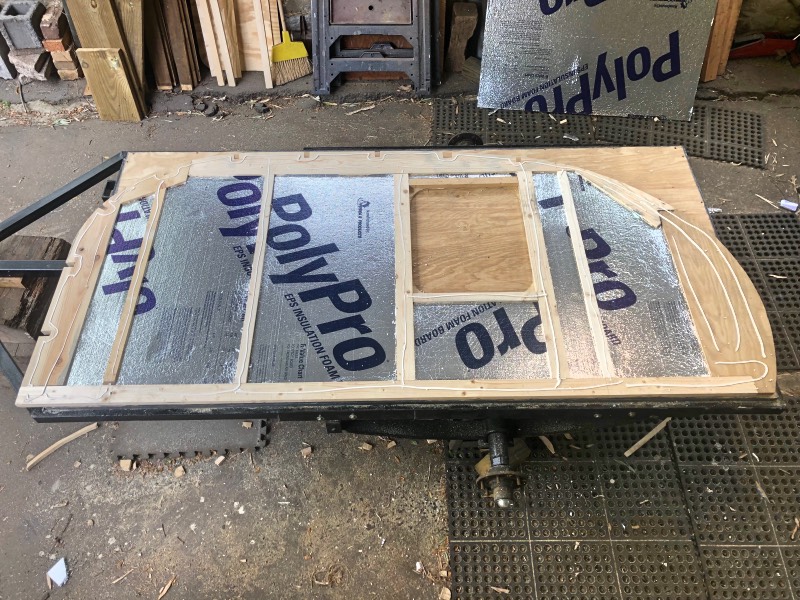

This is one of the side walls. It already has insulation, as well as construction adhesive. Next John will screw on the outside skin.

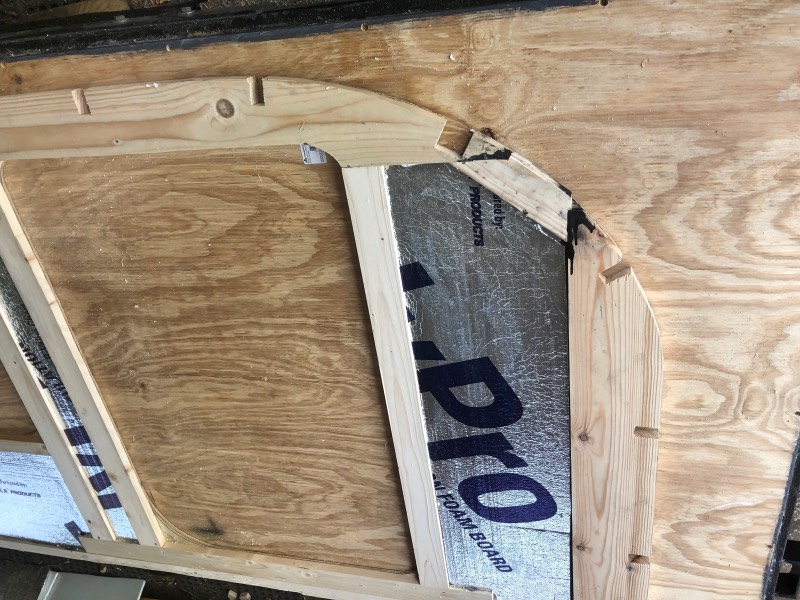

Another view of the side wall. Notice the cutout pockets for the crossbeams. This extra step adds stiffness and strength to the roof.

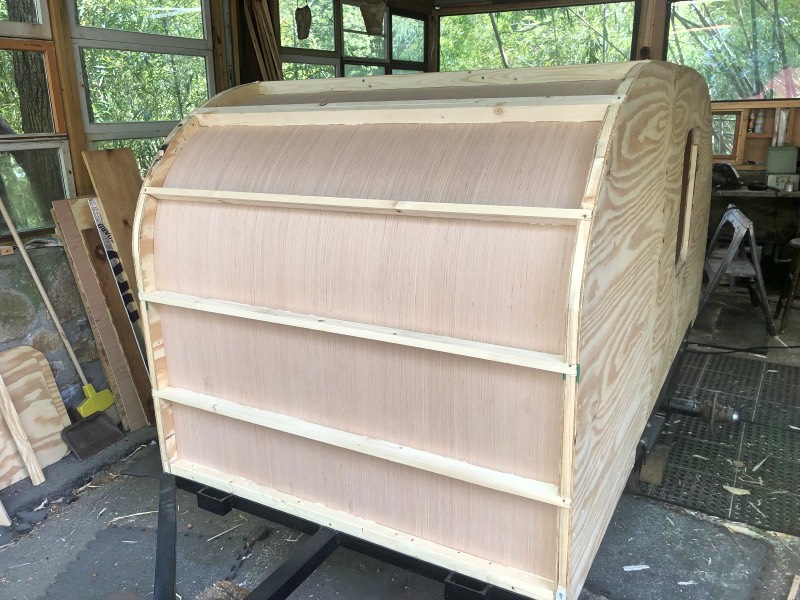

This view shows where the rear galley will be. You can also see the crossbeams.
Late April 2019

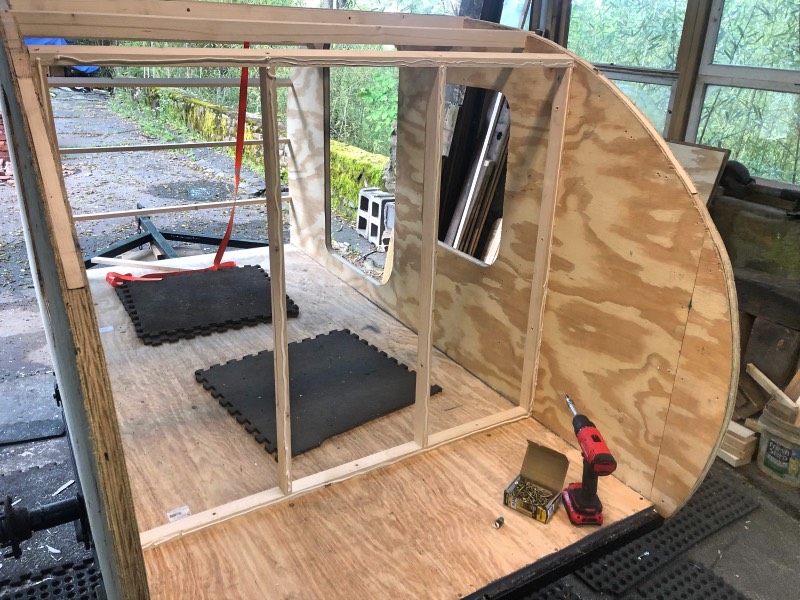

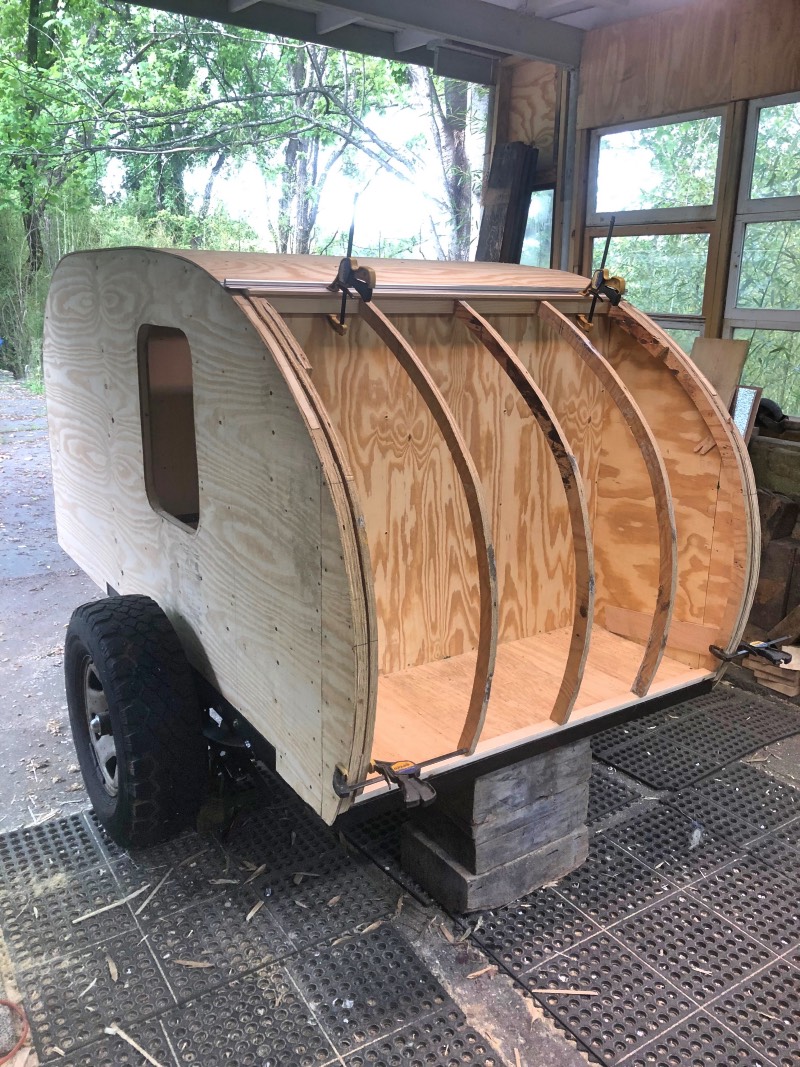

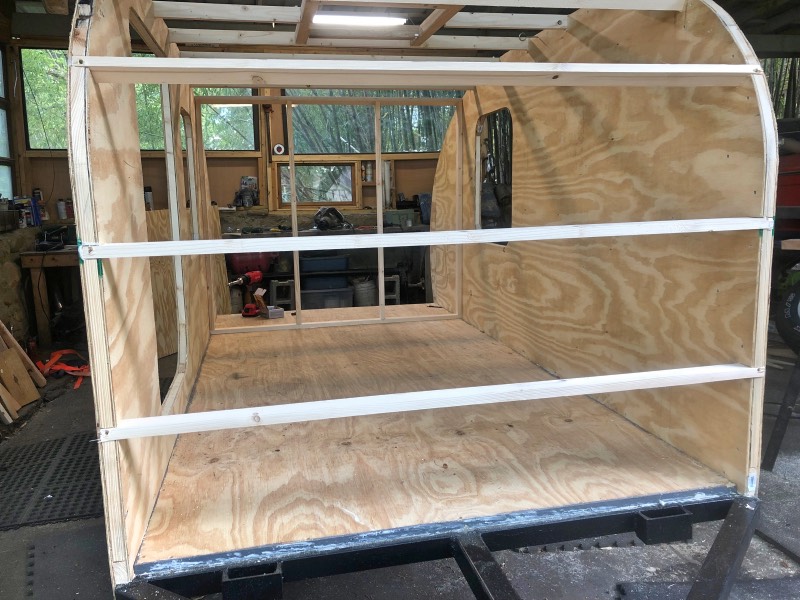

From this view, you can clearly see the crossbeams and sidewalls, as well as the floor platform.
Frame Elements
This image shows installation progress with interior paneling.

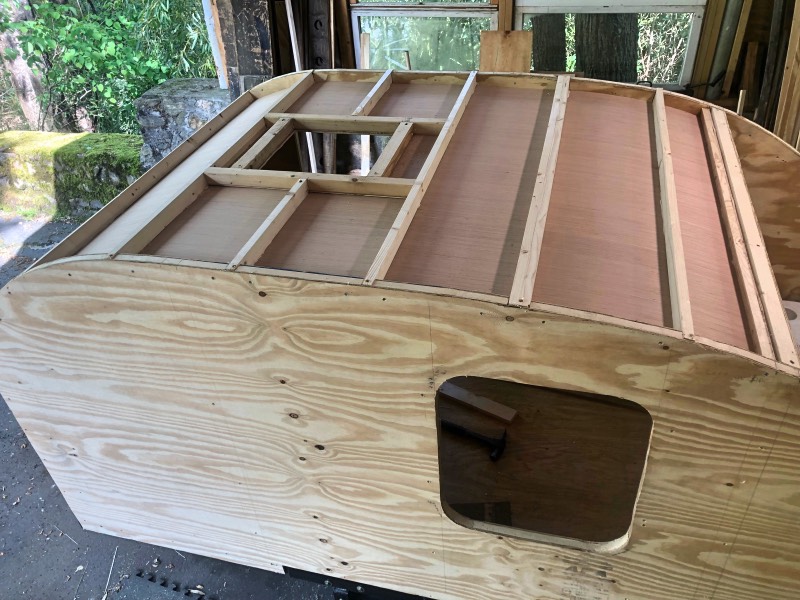

The view above shows the framing around the roof vent. Outer skin is in place.

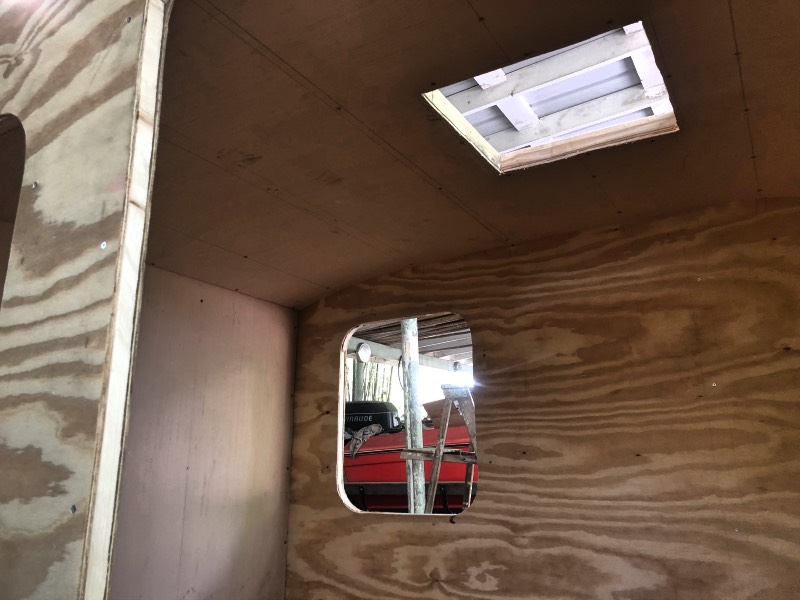

A view from inside with the interior paneling installed.
May 2019

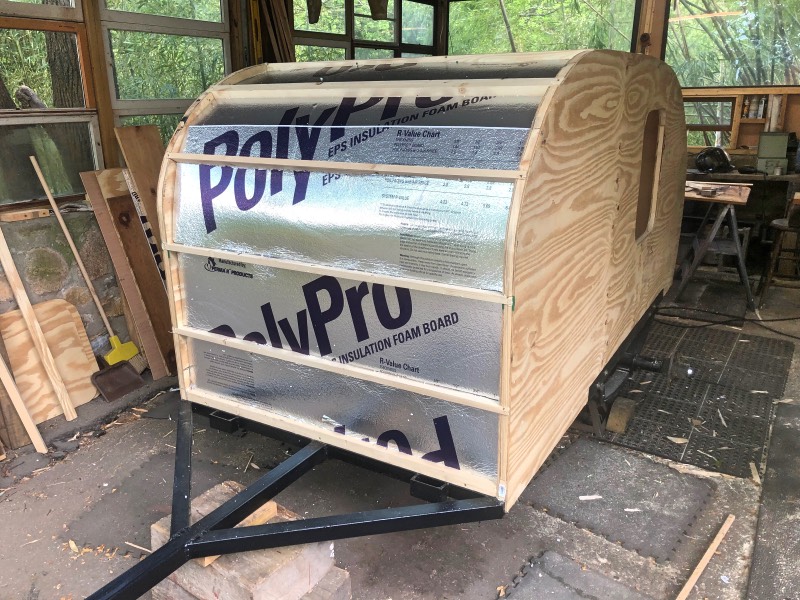

Insulation before John installs outer skin.

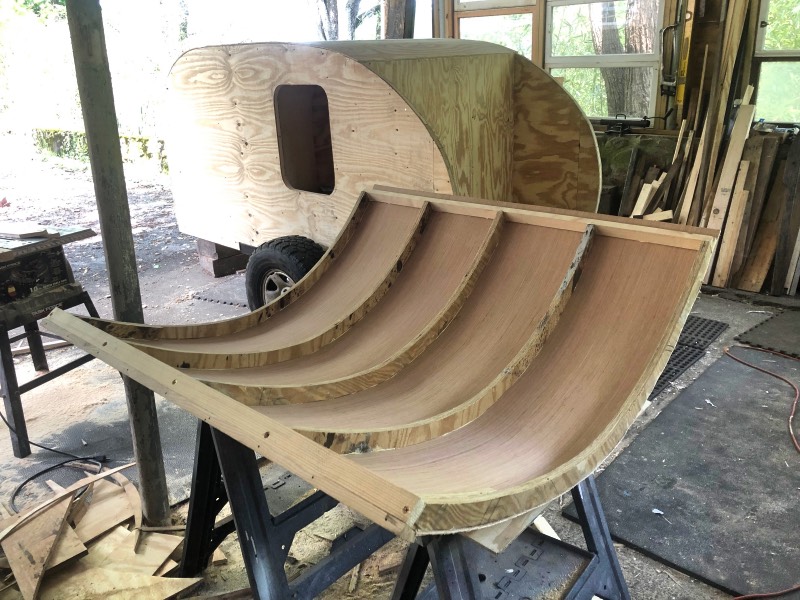

Galley door frame in progress with outside skin.
Fall 2019
Rainier – Exterior Views

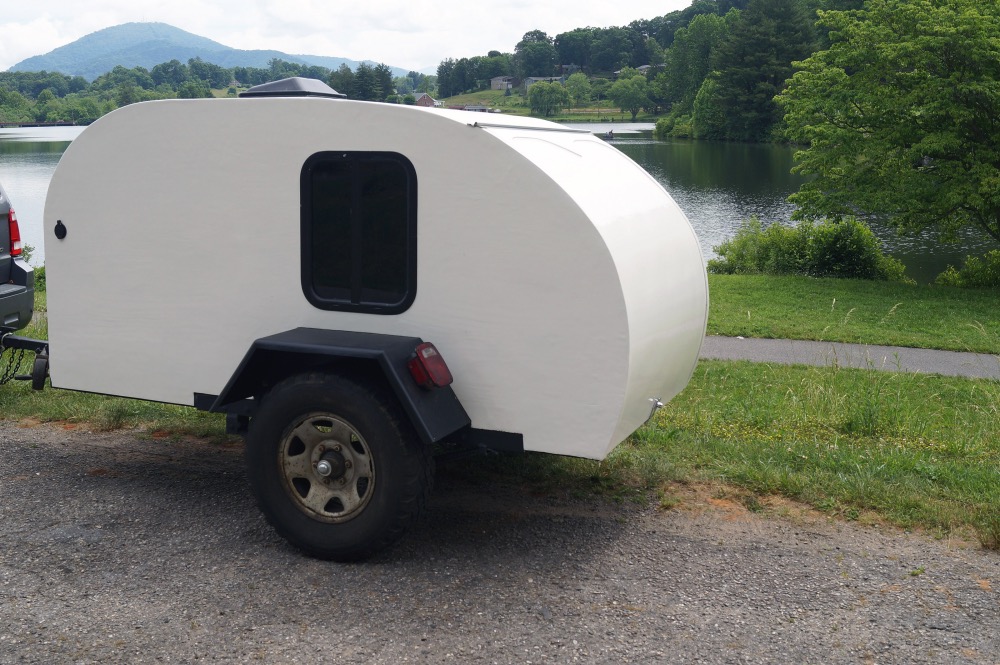

The completed camper. Exterior view.

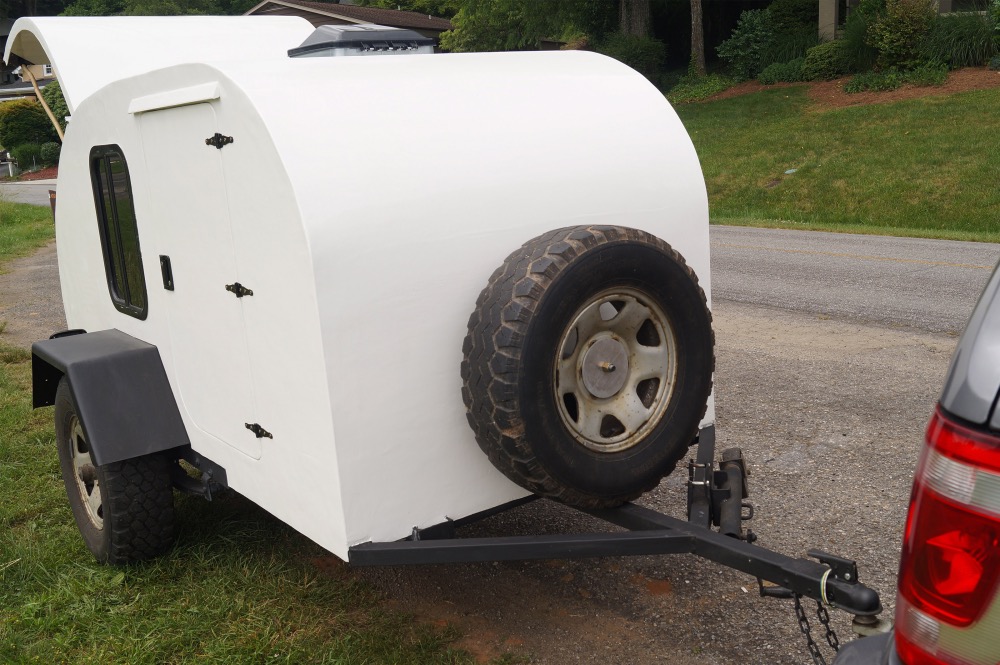

The completed camper. Front passenger-side view.

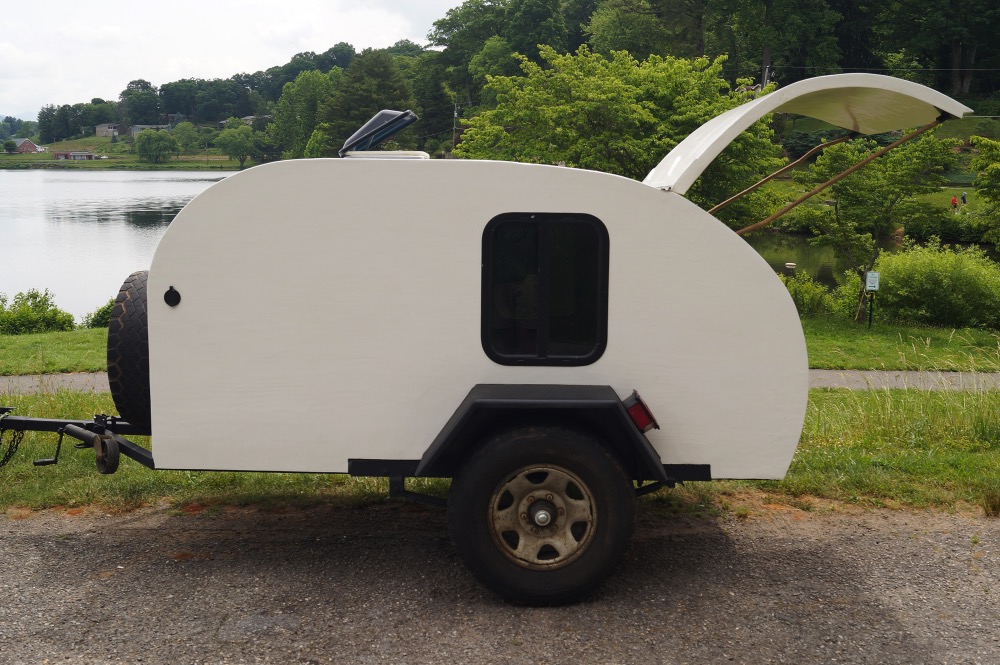

Driver-side view with hatch open.

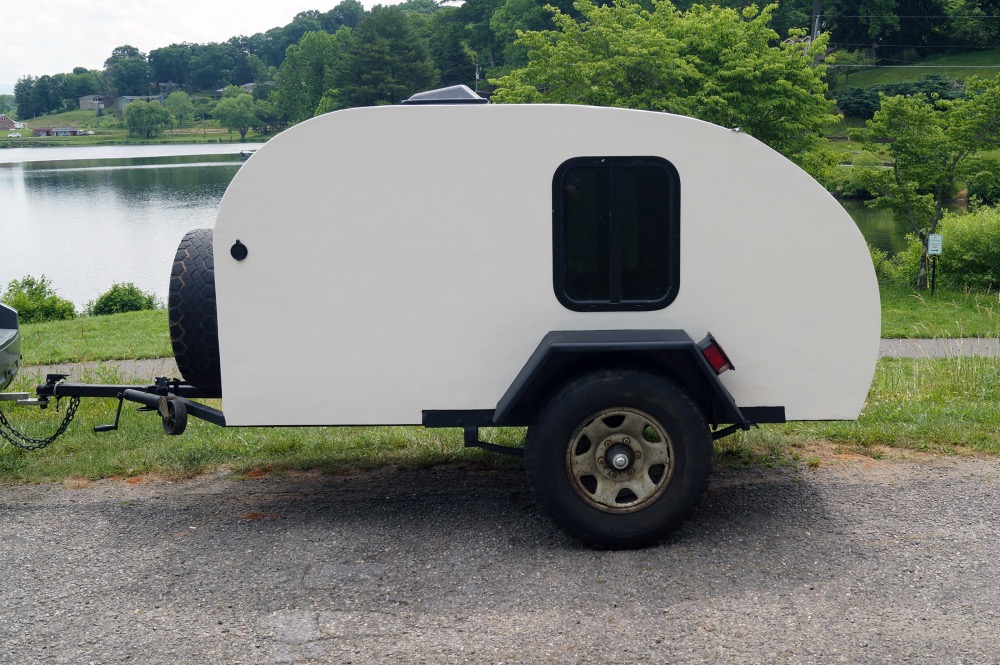

Driver-side view with hatch closed.
Driver-side view with hatch closed and view of back hatch.

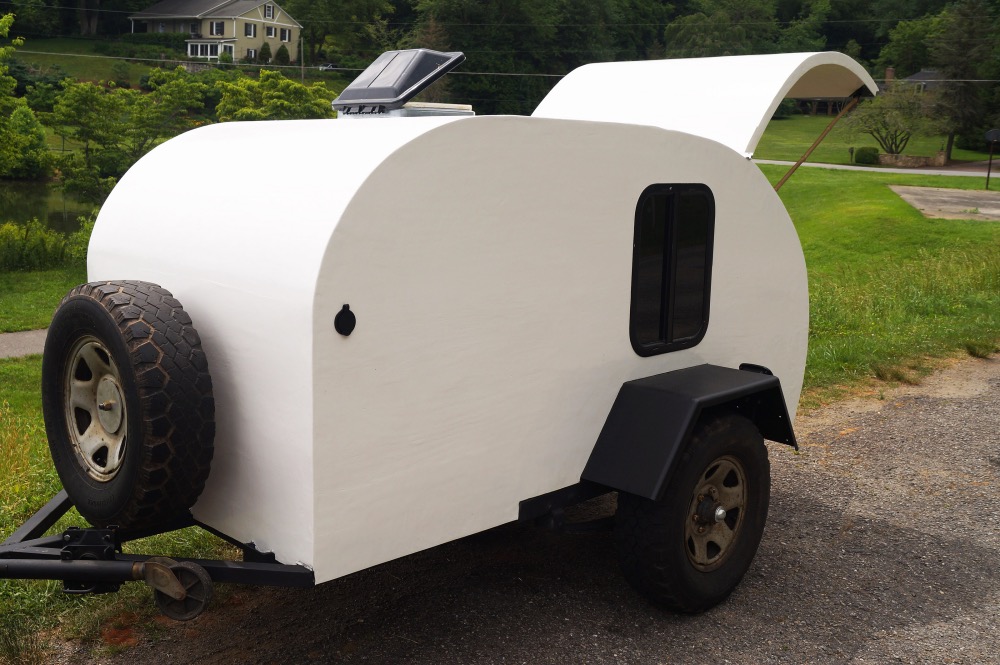

Front of camper and driver-side view with hatch open.

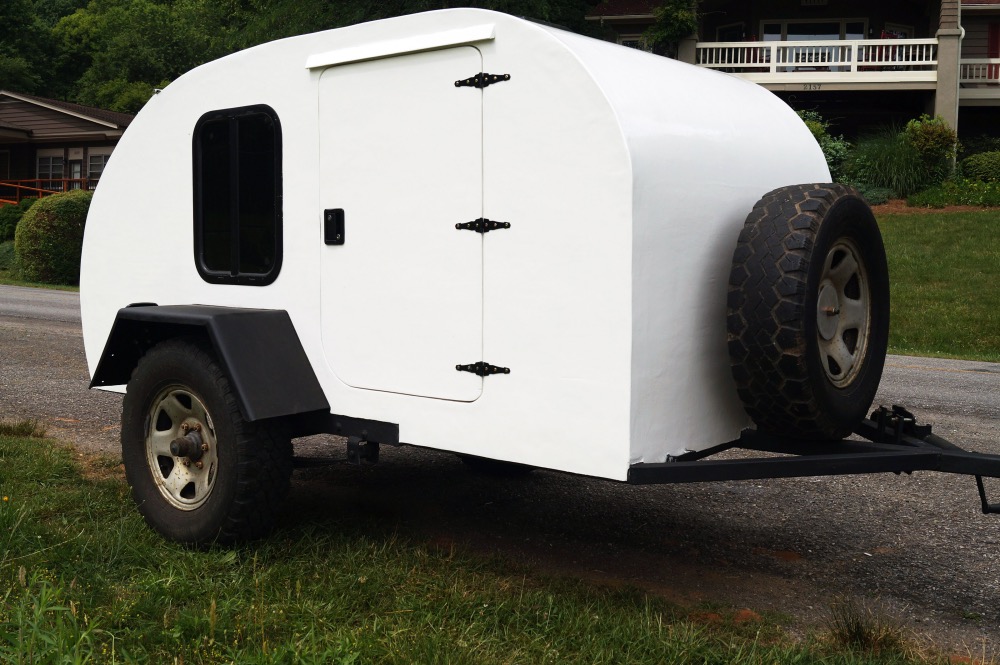

Exterior view of passenger side. Door features RV latch with a deadbolt for added security.

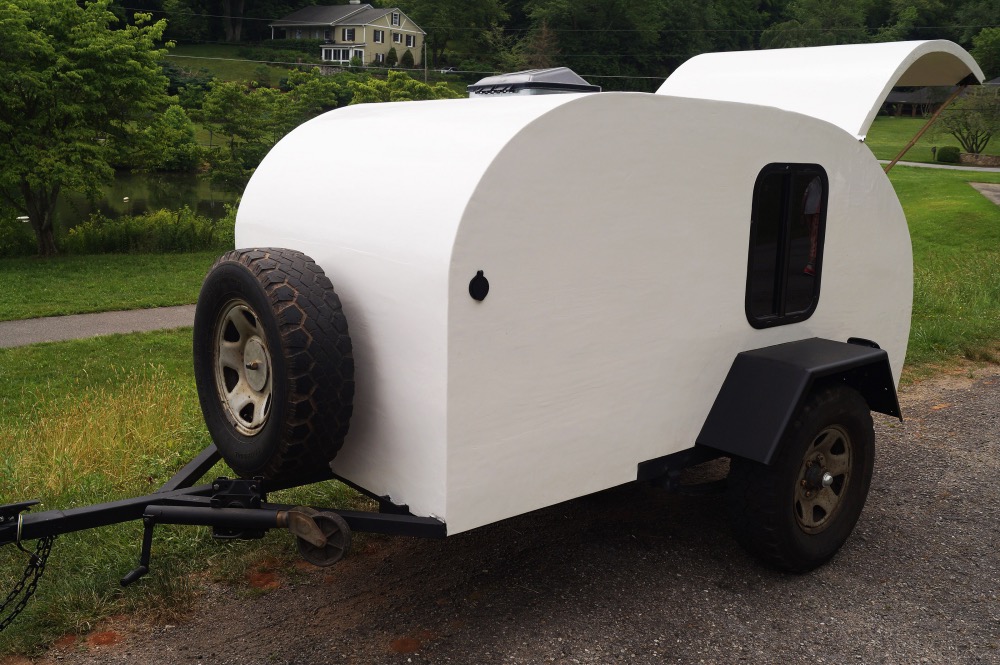

The completed camper. Front driver-side view. Notice the heavy-duty six lug axle and off-road wheels and tires.

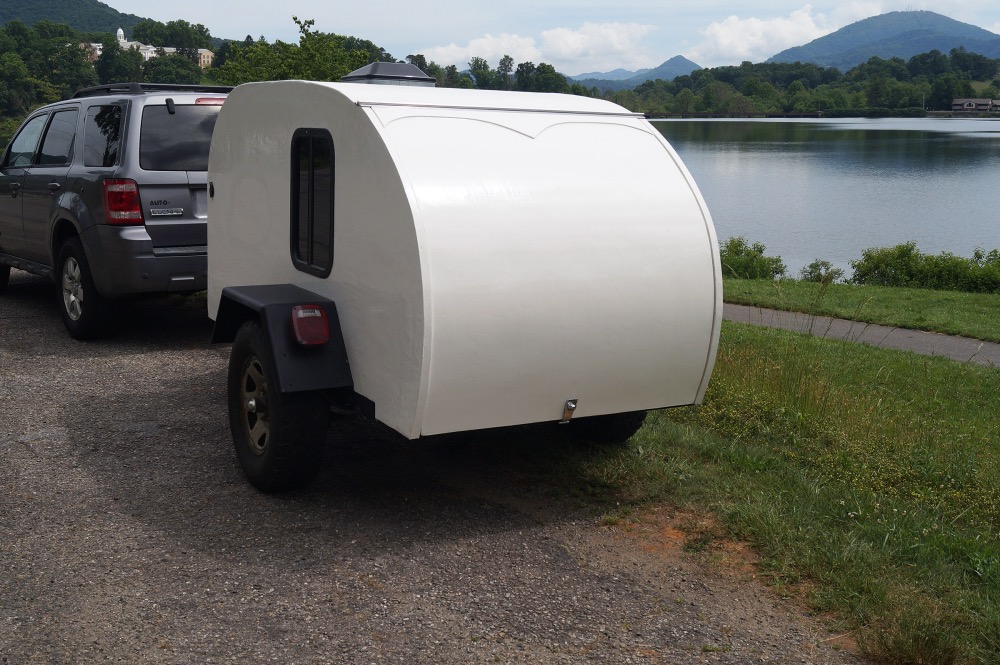

The completed camper. Rear driver-side view. Notice the locking hatch. Jeep taillights also have reverse lights.
Fall 2019
Interior Views

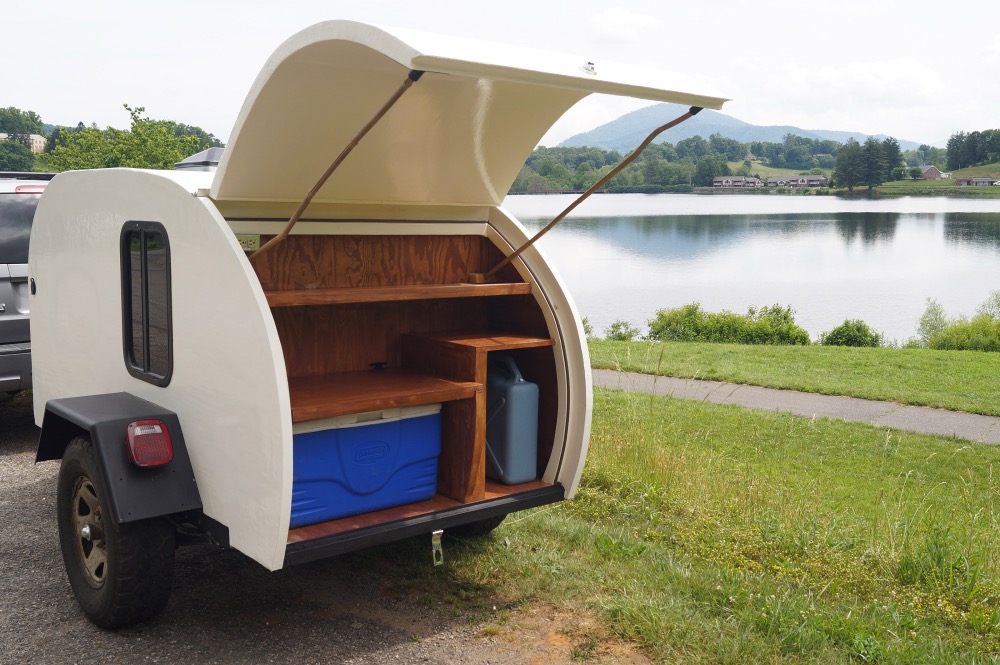

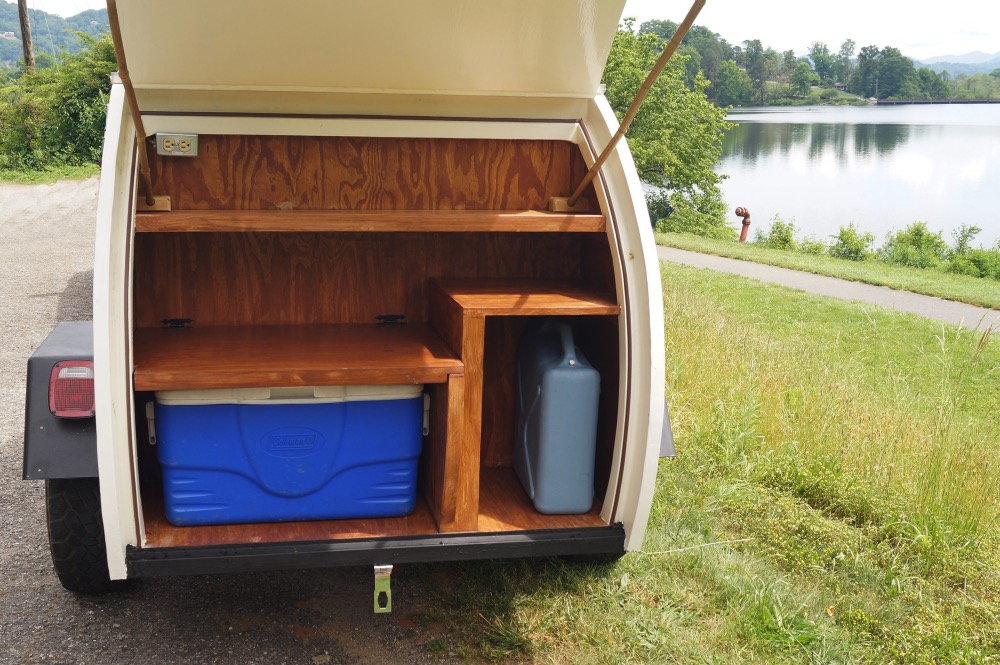

Open hatch showing the galley. Lower left compartment will fit a standard cooler. Lower right compartment fits two six-gallon water containers.
Open hatch featuring galley. Sturdy bamboo rods prop hatch door. Notice GFI-protected outlet.

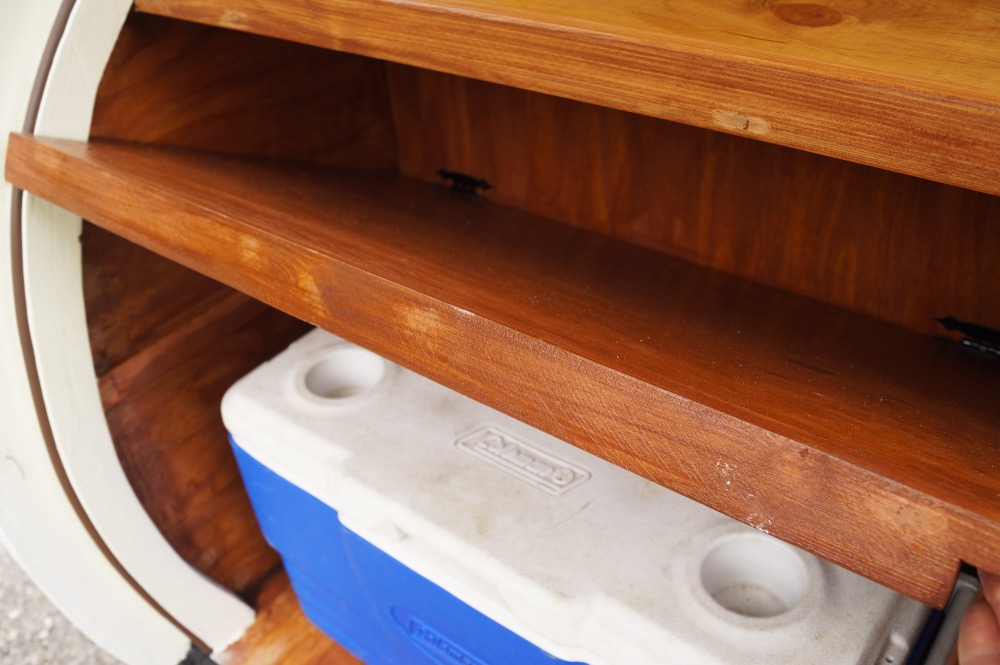

Detailed view of galley. Counter folds up for easy access to cooler.

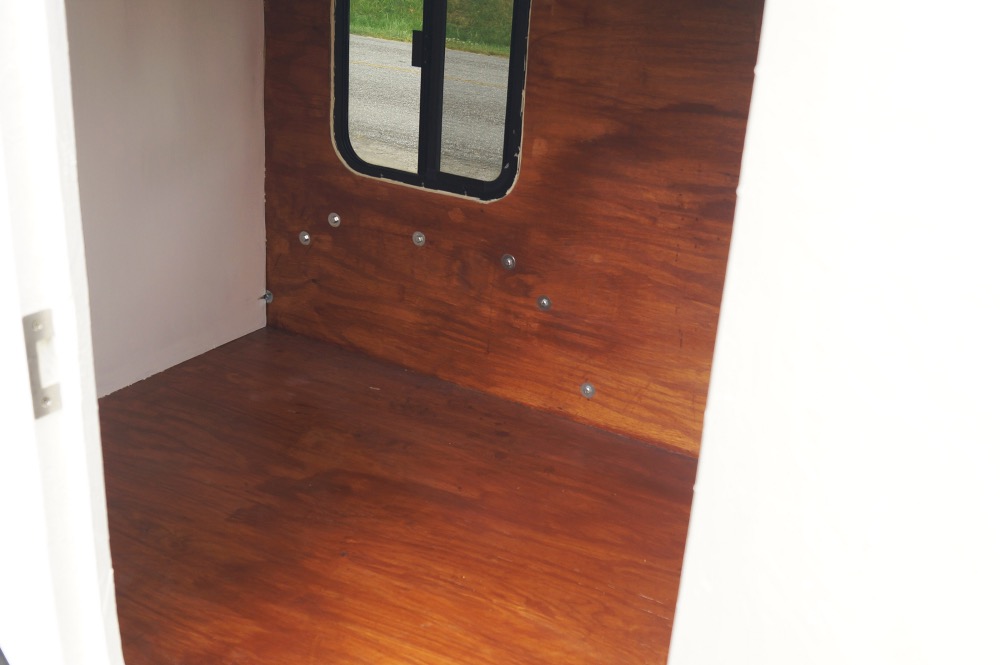

Interior view. Compartment will fit a 48″ x 75″ twin mattress.

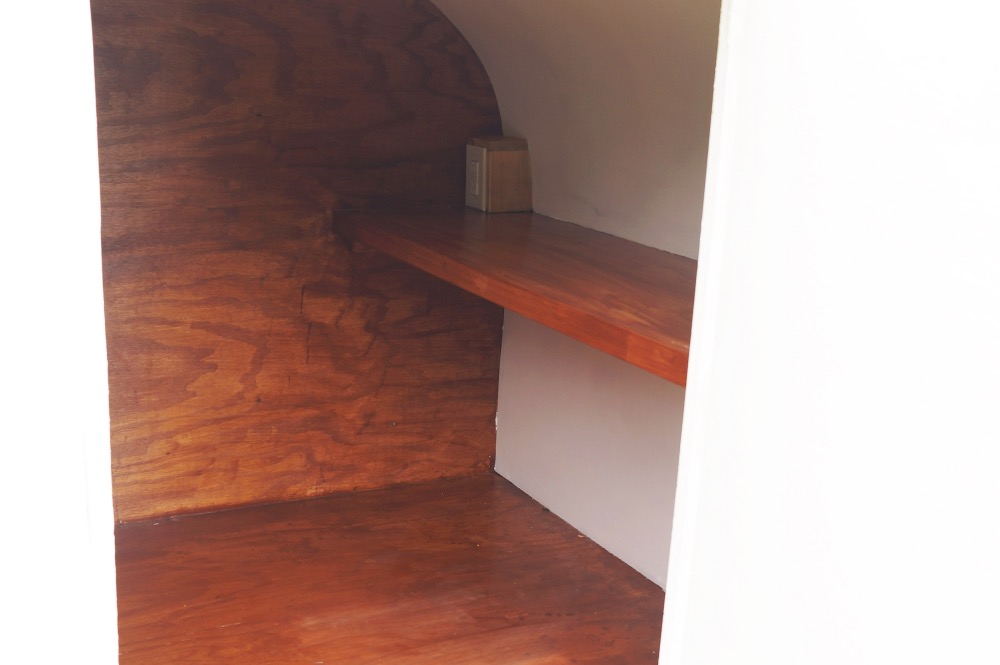

Interior view. Notice the storage shelf with a GFI outlet.

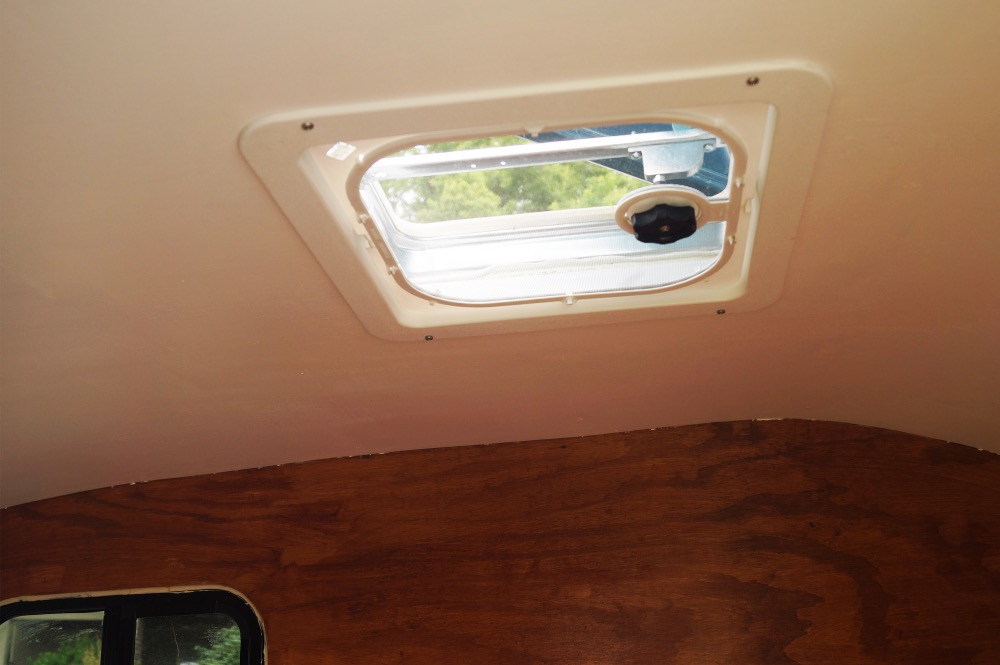

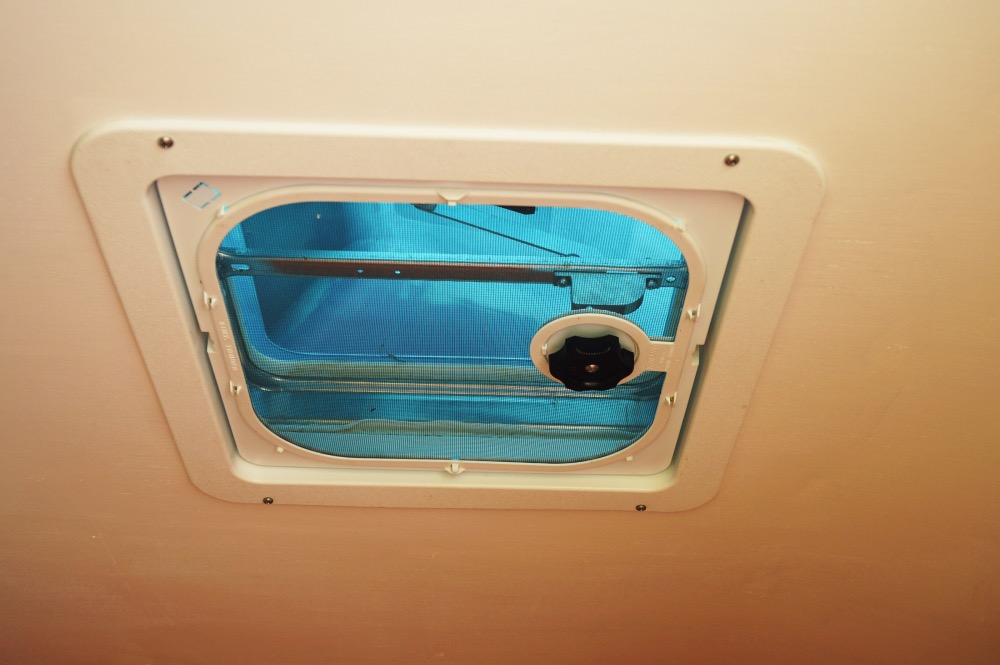

Interior view of ceiling vent.
Ceiling vent open to keep you cool.
Ready for travel.
